True False Rule

Component definition

This component evaluates a logical data variable and decides if it is true or false. The component has two output paths: true and false. Because it performs only a true-false decision, the True False Rule component can handle only logical (true-false) type data variables.

Component icon


Description of component output paths

This rule evaluates a boolean value that is entered to see if it is set to true or false.

The component output paths are described in the following table:


Property

Description

True

If the boolean value is true, the workflow follows this output path.

False

If the boolean value is false, the workflow follows this output path.

Description of component tabs and their properties

The properties on the Configuration tab in the True False component are listed and described in the following table:


Property

Description

Value

The value you want to evaluate. You can choose a constant or a variable value. The value is checked to see if it is true or false.

A variable array value can be selected when you drill into the array and select a value.

The properties on the Settings tab in the Number Range Rule component are listed and described in the following table:


Property

Description

Component Class Name

The class name of this component. This property is not editable, but useful if you call Symantec support.

Description

The description of this component. This property lets you describe how the component is used. You can use it to provide any wanted
documentation for this component.

This description is included in
the model reports that are created when you click Plugins > Generate Business Model.

Location

The physical location of the top left point of this component on the
workflow model.

Name

The name of this component. You can change the name.

If you changed the component name when you double-clicked it on the workflow model, the changed name appears here.

Override Background Color

This property lets you change the background color of this component.

To Do

This property lets you record what you still need to do with the
component. Use this property to help you remember the configuration that you want to apply to this component.

The text that you enter for this property appears at the bottom of the component editor. If you enter text for this property, a checklist symbol appears on the component in the workflow model.

Is Enabled

This property lets you enable or disable the component. By default,
components are enabled. When a component is disabled, it has no
effect on the Project. Uncheck Is Enabled to disable the component.

  • Execution Outcome

    If a component with more than one outcome
    path is disabled, you must select which outcome path you want the component to take. Click the Execution Outcome drop-down list and select the outcome path for the workflow to follow.

  • Disabled Mapping

    If the component has output parameters, you must configure all output parameters with fixed data to pass on. This configuration can be performed in the Disabled Mapping option.

Connection information

Not applicable

Component settings

Unknown

Use cases

Some examples for the Number Range Rule component are as follows:

  • Form check box

    A Web form includes a check box. A True False Rule component determines the value of the check box, and routes the process accordingly.

  • Embedded or linked model output

    A complex embedded model ends in a true-false outcome. Because embedded models have only one outcome path, a True False Rule component evaluates the model's outcome and routes the process accordingly.

Form check box

Scenario: A survey Web form includes an I agree check box, asking users if they want updates to be emailed to them. If users click the check box, the process immediately sends them the most current mail.

Process: This process is created as a Forms (Web) Project type.

The following screen shot shows the process:

A Form Builder component starts the process. This component contains the form that has the "I agree" check box. The output variable for the check box is called CanEmail. Because check boxes must be either checked or unchecked, their value is always either true or false; they cannot have a null value.

The True False Rule component evaluates the value of the check box and routes the process accordingly. In its editor, the True False Rule needs only to know the name of the variable it should evaluate.

Here is the editor configured to evaluate the variable CanEmail.

The following screen shot shows the editor:


Other components in this example are as follows:

  • Form Builder

  • Embedded Model

Embedded and linked models have only one output path. If the model contains decision making that affects the direction of the process, you must use external decision making to determine the result and to route the process

Embedded or linked model output

In the following example, a True False Rule component provides external decision making for a linked model.

Scenario: In a big process, you have a linked model that contains a complex purchase order approval. You need to route the process based on the approval decision.

Process: This process is created as a workflow project type. Think of this example as two processes: one that runs inside the embedded model component (the approval model), and one that runs outside the embedded model component (the primary model).

The process inside the linked model runs through a series of checks, pricing, and data retrieval components before ending. When it ends, the order is either approved or rejected.

The following screen shot shows the process:

In this screen shot we see the end of the linked model approval process. Upon the final decision, an Add New Data Element component is created.

Both of the Add New Data Element components create a logical (true-false) variable called IsApproved. If the order is approved, the IsApproved data element that is set to True is created. If the order is rejected or times out, the IsApproved data element that is set to false is created.

The linked model outputs the IsApproved variable.

For more information on how to configure output data, see the Workflow Solution Designer's Guide.

www.altiris.com/support/documentation.aspx

If the order is approved, it needs to move on to the purchasing department. If the order is rejected, an email needs to be sent as a rejection notice.

This example demonstrates the function of the True False Rule component because an approval request ends with either a true (approved) or false (rejected) outcome.

In this scenario, the linked model must output a variable that has a value of either true or false. Once outside of the linked model, this variable goes into the True False Rule component, where it is evaluated.

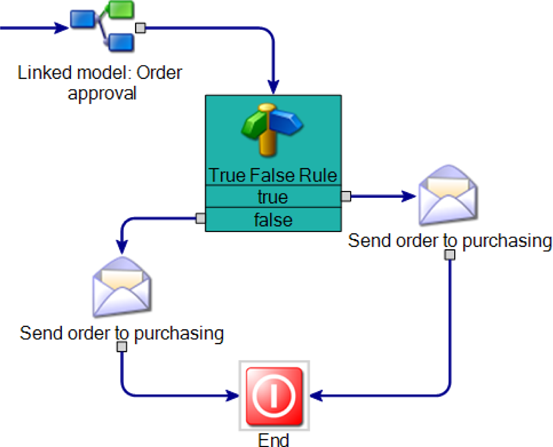

The following screen shot shows the process outside the Linked Model component:

In this screen shot we see the True False Rule component performing external decision making for the linked model. The True False Rule component receives the variable IsApproved, evaluates it to determine whether its value is true or false, and routes the workflow accordingly.

Other applications

In the previous illustration, the linked model had only two possibilities: IsApproved (true) or IsApproved (false).

In other situations, a linked or embedded model may have more than two outcome possibilities, and more than one output variable.

Each True False Rule component can handle only one variable. However, you can use a series of True False Rule components to perform complex decision making

Other components in this example are as follows:

  • Dialog Workflow

  • Add New Data Element

  • Linked Model

  • Send Email
